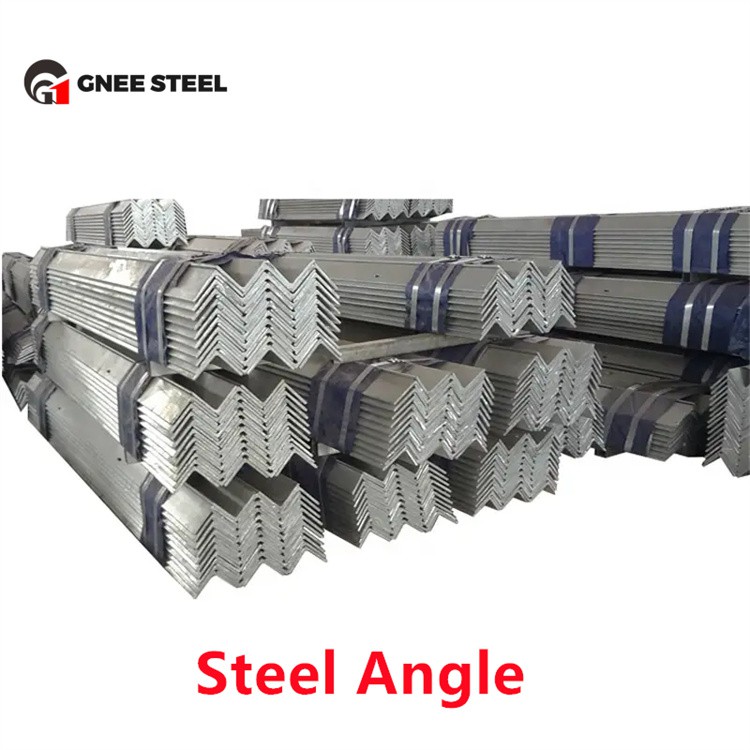

Q235 Carbon Steel Angle Bar, as a high-quality ASTM standard welded pipe material, is a specialized structural carbon steel product engineered to meet the rigorous requirements of ASTM specifications, while adhering to the Chinese GB/T 700 standard for Q235 carbon steel. Designed primarily for welded pipe manufacturing and related structural applications, this angle bar features a classic L-shaped cross-section (available in equal-side and unequal-side configurations) and is crafted from premium Q235 carbon steel, delivering exceptional weldability, mechanical stability, and cost-effectiveness-making it an indispensable material for welded pipe production and various structural engineering scenarios.
As a core material for ASTM standard welded pipes, the Q235 carbon steel angle bar boasts a well-controlled chemical composition that underpins its superior performance. Composed primarily of carbon (0.14%-0.22%), supplemented by manganese (0.30%-0.70%) and silicon, it maintains a balanced combination of strength and ductility, which is critical for welded pipe manufacturing. The Q235 grade ensures a minimum yield strength of 235 MPa and a tensile strength range of 370-500 MPa, providing the necessary load-bearing capacity and structural integrity required for welded pipe systems, whether used as a structural support or an integral component of the pipe structure.
Compliance with ASTM standards is a key highlight of this product, ensuring its compatibility with global welded pipe manufacturing requirements. Specifically, it meets the dimensional tolerances and performance criteria outlined in ASTM A6/A6M (Standard Specification for General Requirements for Rolled Structural Steel Bars, Plates, Shapes, and Sheet Piling), which is widely recognized as the benchmark for structural steel used in welded applications. This ASTM compliance ensures that the Q235 carbon steel angle bar can be seamlessly integrated into welded pipe projects adhering to international standards, facilitating cross-border applications and ensuring consistent quality across global markets.
Weldability is the core advantage of this Q235 carbon steel angle bar, making it ideally suited for ASTM standard welded pipe material applications. Its low carbon content and optimized chemical composition minimize the risk of hardening and cracking in the heat-affected zone during welding, ensuring strong, durable, and leak-proof joints-critical for welded pipe systems that often carry fluids or bear structural loads. It is fully compatible with standard welding methods, including arc welding, MIG welding, and TIG welding, allowing for efficient and reliable fabrication of welded pipes without compromising structural performance.
The product is manufactured using advanced hot-rolling technology, which further enhances its quality and suitability for welded pipe applications. During production, Q235 steel billets are heated to a high temperature (above 1000°C) to soften the material, then subjected to precision rolling to form the L-shaped cross-section. This hot-rolling process refines the internal grain structure, eliminates internal defects such as pores, inclusions, and microcracks, and improves the material's ductility and toughness-all of which contribute to its excellent weldability and structural stability. The hot-rolled surface features a natural oxide film, which can be easily removed prior to welding to ensure optimal joint quality.
In terms of specifications, the Q235 Carbon Steel Angle Bar - ASTM Standard Welded Pipe Material offers a comprehensive range of dimensions to accommodate diverse welded pipe manufacturing and structural needs. Leg lengths (for equal-side angle bars) range from 20mm to 200mm, while unequal-side configurations feature longer legs from 30mm to 200mm and shorter legs from 20mm to 125mm; thicknesses span 3mm to 25mm, and standard lengths are 6m, 9m, and 12m. Custom lengths and special dimensions are available for bulk orders, catering to specific welded pipe project requirements, such as large-diameter pipe supports or custom structural connections.
Beyond its primary application as an ASTM standard welded pipe material, this Q235 carbon steel angle bar is also widely used in supporting structural components related to welded pipe systems. It serves as brackets, supports, and connectors for welded pipe installations in industrial facilities, infrastructure projects, and building systems-providing stable load distribution and structural reinforcement. Additionally, it finds applications in other structural scenarios where weldability and cost-effectiveness are prioritized, such as light steel frames, scaffolding, and equipment bases, further demonstrating its versatility.
Each batch of Q235 Carbon Steel Angle Bar - ASTM Standard Welded Pipe Material undergoes strict quality control procedures to ensure compliance with both ASTM and GB/T standards. Quality inspections include chemical composition analysis, mechanical property testing (yield strength, tensile strength, impact toughness), dimensional accuracy verification, and surface quality assessment. This rigorous quality control ensures that the product meets the high standards required for welded pipe manufacturing, delivering consistent performance and reliability. For outdoor or corrosive environments, the angle bar can be further treated with galvanization or painting to enhance corrosion resistance, extending its service life in welded pipe systems and structural applications.
